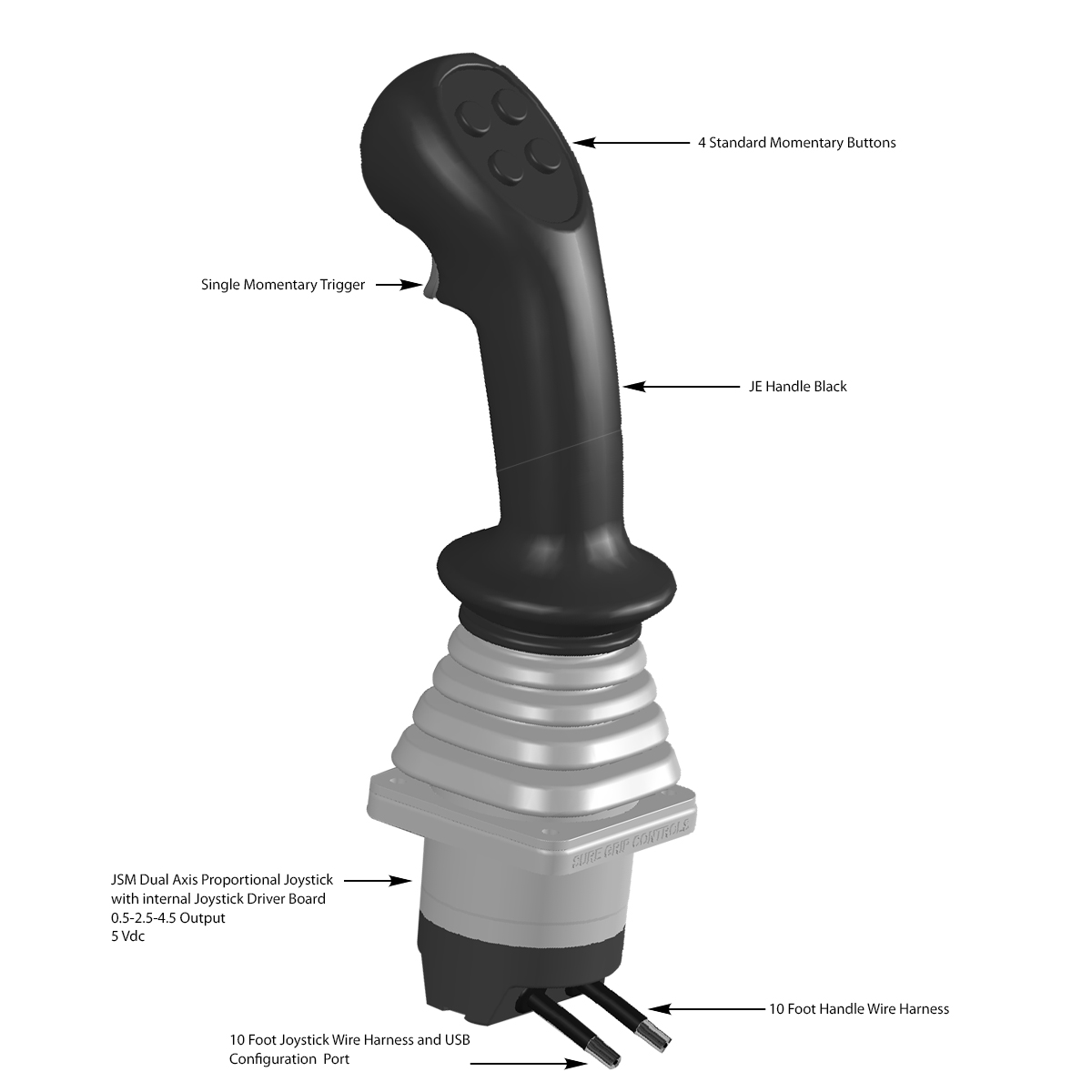

Joystick, 2-Axis withdirect PWM Output 4x 2.5AMP with J-handle, 4 momentary switch and 1 trigger for 12/24V

Joystick with 2 analog axis with 4 x PWM outputs, J handle 4 momentary switches, 1 trigger

JSM Joystick Description

Sure Grip Controls “JSM” Series electronic joystick is our second generation joystick that incorporates the newest Hall sensor technology and advanced internal wire configuration. With all the electronics now relocated in the cap, it improves serviceability and allows us to offer PWM output options in dual axis spring-return-to-center configurations.

Electronics

The “JSM” Series joystick incorporates Hall sensor technology that provides a linear output of the attached handle position. This sensing technology is designed to perform consistently within harsh environments.

Output Options:

• PWM High Current Valve driver, four 2.5 amp PWM outputs

Joystick Features

• Long life – tested to 20 million operations
• Rugged design
• Operating temperature: -40°C to +85°C
• EMC: 100V/m
• Fully sealed and encapsulated electronics
