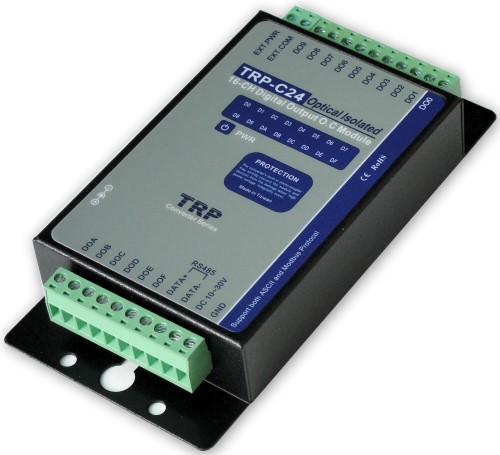

Isolated 16 CH. digital output (Open Collector) RS485 Module

Rated 0 out of 5
14 sold in last 07 hours

$376.20

Features
  • Wide input range DC power supply..
  • Support ASCII and Modbus RTU protocol.
  • Supports baud rates from 1.2Kbps to 115.2 Kbps.
  • Digital output signal with 3750Vrms isolation protection.
  • Dual watchdog: Module’s firmware, host computer traffic.
  • LED for each channels working status.
  • DIN-Rail and panel mount support.
  • Configured and self-test by external dip-switch.
  • Support screw terminal and external DC power adaptor.


Specifications
  • Power Input Voltage DC +10V to +30V.
  • Protocol: ASCII and Modbus RTU.
  • Digital output maximum voltage:+30V.
  • Digital output maximum current: 100mA.
  • Digital output isolation: 3750Vrms.
  • Communication interface: RS-485 differential 2 half/duplex wires.
  • Communication speed form 1.2Kbps to 115.2Kbps auto-switching.
  • Data format: Data bit: 8, Parity Check: None, Stop Bit: 1.
  • Distance: up to 4000ft ( 1200M ).
  • Connection type: Screw terminal for maximum AWG 12 wire.
  • Signal LED: Power, and all output channels.
  • Power supply: Screw terminal, or external DC adapter.
  • Power consumption 1.5W.
  • Operating environment: 0 to 50℃.
  • Storage temperature:. -20 to 70℃.
  • Humidity: 10~90% Non-condensing.
  • Dimension: 151mm X 75mm X 26mm .
  • Weight: 395g .
− +
Add to wishlist Add to compare

  • Order in The Next to get it by June 7, 2025
  • Real Time 151 Visitor Right Now
Categories: , , Tags: , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

    The TRP-C24, an isolated output open collector RS-485 module, provides 16 digital outputs channels that allow you output open collector signal (100mA) to driven your devices on RS-485 network. All channels feature screw terminals for convenient connection of field signals as well as LED’s to indicate channel working status. All outputs are equipped with photo-couplers to protect the module against high voltage spikes, as well as ground potential differences. For easy user access, TRP-C24 can enter configuration mode and self-test mode with outer dip-switch. TRP-C24 support both ASCII and Modbus protocol, with a full set of command, dual watch-dog, and auto reset function the module can be remote controlled by PC in ASCII or Modbus RTU protocol.
