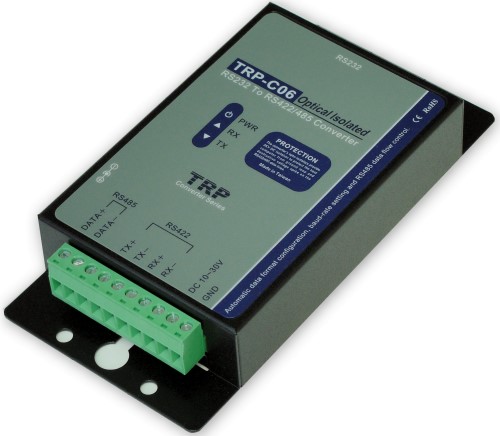

RS232 to RS422/485 Optical Isolated Converter

Rated 0 out of 5
16 sold in last 07 hours

$190.08

Features:

  • Wide range input DC power supply.
  • Automatic data format configuration.
  • Auto direction flow control on RS-485.
  • Auto baud rate switching from 300bps to 115.2Kbps.
  • 3000V DC isolated protection.
  • Surge protection on RS-422/485 data lines.
  • Power/TX/RX mode LED indicator.
  • Support screw terminal and external DC power adaptor.
  • Din rail or panel mounts support.

Specifications:

  • Power input voltage: DC +10V to +30V.
  • Host connection: Standard D-Sub 9 pin female connectors.
  • RS-232 interface: Standard D-Sub 9 pin female connector
  • RS-232 signal: TXD, RXD, and GND.
  • RS-422/485 interface: Industrial plug-in screw terminal.
  • RS-485 signal: differential 2 half-duplex wires (DATA+, DATA-).
  • RS-422 signal: differential 4 full-duplex wires. (TX+, RX+, TX- , RX-)
  • Plug-in screw terminal wiring: Accepts AWG #12 ~30 wires.
  • Transmission distance: RS-422/485 up to 4000ft (1200M).
  • Communication speed: from 300bps to 115.2Kbps.
  • Isolation voltage: 3000V DC.
  • Serial data format: Asynchronous data with all common combination of bits, parity, stop.
  • Signal LED: Power on, TX, and RX.
  • Power supply: Screw terminal, or external DC adapter.
  • Power consumption: 1.2 watt.
  • Operating Temperature：-10 to 50℃ .
  • Storage Temperature: -20 to 70℃.
  • Humidity: 10-90% Non-condensing.
  • Dimension: 151mm X 75mm X 26mm
  • Weight: 375g .
− +
Add to wishlist Add to compare

  • Order in The Next to get it by April 21, 2026
  • Real Time 108 Visitor Right Now
Categories: , , Tags: , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

    The TRP-C06 allows RS-232 line signal to be bi-directionally converted to RS-422 or RS-485 standard and transmit data up to 1.2KM . Featuring automatic data format and baud rate detect function user just need to plug in the unit and go without extra configuration efforts. TRP-C06 is equipped with 3000V DC of isolation and internal surge protection on data lines to protect the host computer and converter against high voltage spikes, as well as ground potential differences. The industry standard DIN rail and panel mounting design enable user a fast and professional installation.
