Ethernet to Fiber Media Converter, SC/20KM

Rated 0 out of 5
40 sold in last 03 hours

$324.72

Features
  • Wide input range DC power supply.
  • Plug-and-Play design for the installation within seconds.
  • Compact and Rugged Metal case capable of withstanding harsh environment.
  • Data rate: 10/100Mbps auto-negotiation and half-/Full-duplex mode on TX port.
  • Auto MDI-X/MDI-II for 10/100Base-TX port.
  • Provides media conversion from UTP to Fiber Optic media types
  • Supports link fault pass through function.
  • Supports far end fault function.
  • LED display to indicate the whole working status.
  • 3 power input types: Direct USB power, external DC adapter and screw terminal.
  • Support IEEE Standard: 802.3u 100BaseTX & 100BaseFX.
Specifications
  • Cable: Fiber cable (9/125um).
  • One 10/100Base-TX auto-negotiation Ethernet RJ-45 port.
  • One 100Mbps fiber port with Single-mode SC connector.
  • Built in 128Kb RAM for data buffer.
  • Wavelength: 1310 nM.
  • Fiber Power:-15 ~ -8 dBm.
  • LED indicator: Power and power and TX and fiber link/activity, full/half, 10/100MB.
  • Distance : 20KM can be up to 60KM  (option).
  • Speed : Auto 10/100MB.
  • Power Consumption: 12V/160mA.
  • Power requirement: USB port power or DC input or screw terminal from +10 to 30V.
  • Operating temperature: -10 to 50℃.
  • Storage temperature : -20 to 70℃.
  • Humidity: 10-90% Non-condensing.
  • Dimension: 151mm X 75mm X 26mm .
  • Weight: 400g .
− +
Add to wishlist Add to compare

  • Order in The Next to get it by March 7, 2026
  • Real Time 194 Visitor Right Now
Categories: , , Tags: , , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

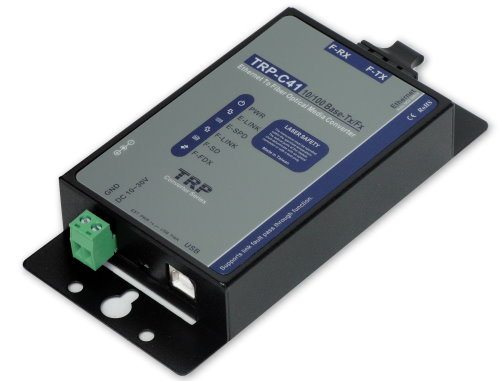

    TRP-C41 is a device for Ethernet extension over fiber, it supports point-to-point and networked systems. The high fiber bandwidth connections solve problems with electrical noise and different ground potentials over long transmission lines. TRP-C41 supports 10/100Base-TX transmissions up to 100 meters and 100Base-FX transmissions up to 20KM . It is the perfect solution for wide distance connections with high immunity to electrical noise.
