GEMAC License for SAE J1939
$1,122.00License for optional bus systems-SAE J1939 for CBT2 This product is available for download in 1 day. -
GEMAC License for DeviceNet
$2,131.80License for optional bus systems- DeviceNet for CBT2 This product is available for download in 1 day. -
GEMAC Licenses for CANopen
$1,795.20License for optional bus systems- CANopen for CBT2 This product is available for download in 1 day. -
GEMAC CAN-Bus Tester 2
$8,033.52
Possibilities
The CAN-Bus Tester 2 is a widely used measuring device for control of bus parameters. The success story starts already in year 2002 with the first model. The hardware was completely redesigned in version 2. The corresponding software is still developed and has been enhanced with extensive updates.
Check the setup of the bus before you switch on with the bus wiring test, measure under running conditions down on the physical layer and analyses data of the nodes with the protocol monitor. The long time monitor shows scattered errors and creeping signal loss.
The trigger output makes it possible to show data of only one node of the bus.
The great box contents within the service case with big adapter set makes it possible to use the device out of the box in many environments. You can safe your measurements and print a status protocol directly from the software.
Bus Systems
The measuring device works in the networks CAN, CANopen, DeviceNet and SAE J1939.
To know more about this product check the youtube link.
This product will take upto 5 weeks for delivery. -
OPUSA6EN1CANT000
$2,263.00OPUSA6EN1CANT000 The OPUS A6e is the first choice for complex HMI (Human Interface) which rely on the processing of a wide range of information. This unit features a bright, high-resolution display with a great picture – and therefore offers complete ease of use under all operating conditions. With an optimised size of 7” and a 800 x 480 pixel resolution, everything the operator needs is perfectly readable. The large 512 MB or optional 1 GB of memory, combined with the 32-bit, 532 MHz processor, is ideally suited to demanding applications. The device can be orientated either horizontally or vertically and we can supply it in either standalone or dashboard options.Integrated Camera Input
A built-in camera input allows you to easily connect an OPUS camera. Further features of the OPUS A6e are two CANbus ports and four configurable inputs either analog or digital. The OPUS A6e can also be fitted with an analog resistive touchscreen and two additional camera inputs as optional extras. -
OPUSA6SN1CANF000
$2,877.00OPUSA6SN1CANF000 The difference is in the sum of all the details. Where the features of the OPUS A6e are still not enough, there is always its ‘big brother’: the OPUS A6s. This model can offer many additional and practically relevant features where the technical demands are greater. It offers a bright 7” display coupled with up to three video inputs. The full-speed USB 2.0 input on the front is best suited to high-speed data exchange and is positioned in the casing of the unit for maximum protection against the elements. Available as a standalone or dashboard solution, the unit offers twelve softkeys and three hardkeys, plus four digital or analog inputs. A multi-color LED and a standard LED provide immediate visual indication to the operator of any faults detected. Two CANbus Ports The high-performance, 32-bit, 532 MHz processor and the memory capacity of either 512 MB or 1 GB of RAM plus 128 or 256 MB of DDR2 make the OPUS A6s a powerful heavyweight. Fitted with two CANbus ports, it leaves no wish unfulfilled. A front-mounted, high-speed USB port and 3 camera inputs can also be included as optional extras. Problem-free functionality is assured by the trusted Embedded Linux operating system. -
OPUSA6SN1CANB000
$2,263.00OPUSA6SN1CANB000 The difference is in the sum of all the details. Where the features of the OPUS A6e are still not enough, there is always its ‘big brother’: the OPUS A6s. This model can offer many additional and practically relevant features where the technical demands are greater. It offers a bright 7” display coupled with up to three video inputs. The full-speed USB 2.0 input on the front is best suited to high-speed data exchange and is positioned in the casing of the unit for maximum protection against the elements. Available as a standalone or dashboard solution, the unit offers twelve softkeys and three hardkeys, plus four digital or analog inputs. A multi-color LED and a standard LED provide immediate visual indication to the operator of any faults detected. Two CANbus Ports The high-performance, 32-bit, 532 MHz processor and the memory capacity of either 512 MB or 1 GB of RAM plus 128 or 256 MB of DDR2 make the OPUS A6s a powerful heavyweight. Fitted with two CANbus ports, it leaves no wish unfulfilled. A front-mounted, high-speed USB port and 3 camera inputs can also be included as optional extras. Problem-free functionality is assured by the trusted Embedded Linux operating system. -
OPUSA3EN1CANT000
$614.00OPUS A3e A lot of technology – at a low investment cost. This slogan fittingly describes the OPUS A3e . This full-value operator console features a 4.3” screen with 480 x 272 pixels and is optionally available with a touchscreen display. A further plus point of the OPUSA3e is its weight: less than 1kg. Inside is a powerful and reliable 32-bit, 532 MHz processor, with memory option ranging from a minimum of 512 MB, up to 1 GB. Equipped with a multi-color LED, 4 analogue or digital inputs, 2 CANbus ports and a full-speed USB 2.0 interface, this low-cost unit is not lacking in functionality. The OPUS A3e: high performance at an entry-level price.Acoustic Alarm
To assure reliable monitoring, the full line version of the OPUS A3e features an acoustic alarm with an output of up to 65 dBA. This makes it particularly suitable as a parameterisation unit, and it uses the trusted Embedded Linux operating system. You can count on it: the OPUS A3e offers the best price-to-performance ratio available on the market in its class. -

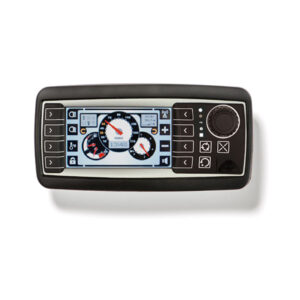

OPUSA3SN1CANF000
$1,081.00OPUS A3s The OPUS A3s offers you all the possibilities of the OPUS A3eco, but with even more useful features. The A3s version allows the user to implement a variety of different user interfaces with ease. The unit also includes an encoder, eight softkeys and three hardkeys with exceptional tactile touch underlining the quality of the A3s. The 4.3” screen features operation verification, and can also be supplied as an analog resistive touchscreen. The multi-color LED is supplemented by three additional LEDs. The full-speed USB 2.0 input on the front is best suited to high-speed data exchange and is positioned in the casing of the unit for maximum protection against the elements. CANbus ports for fast operation, an acoustic alarm with up to 65 dBA output and a camera input to ensure the highest level of safety. A powerful 32-bit, 532 MHz processor offers outstanding performance. This is supported by either 512 MB or 1 GB of RAM, plus 32 KB of serial EEPROM. -
OPUSA3SN1CANB000
$614.00OPUS A3s The OPUS A3s offers you all the possibilities of the OPUS A3eco, but with even more useful features. The A3s version allows the user to implement a variety of different user interfaces with ease. The unit also includes an encoder, eight softkeys and three hardkeys with exceptional tactile touch underlining the quality of the A3s. The 4.3” screen features operation verification, and can also be supplied as an analog resistive touchscreen. The multi-color LED is supplemented by three additional LEDs. The full-speed USB 2.0 input on the front is best suited to high-speed data exchange and is positioned in the casing of the unit for maximum protection against the elements. CANbus ports for fast operation, an acoustic alarm with up to 65 dBA output and a camera input to ensure the highest level of safety. A powerful 32-bit, 532 MHz processor offers outstanding performance. This is supported by either 512 MB or 1 GB of RAM, plus 32 KB of serial EEPROM. -
Joystick 2 axis, Analog Output with Inline Danfoss PVG- Ratiometric Output, with J Handle grip
$1,861.20Joystick with 2 analog axis with in line driver for PVG ratiometric outputs, J handle 4 momentary switches, 1 trigger Electronics The "JSM" Series joystick incorporates Hall sensor technology that provides a linear output of the attached handle position. This sensing technology is designed to perform consistency within harsh environments that otherwise would not be feasible to support with mechanical sensing solutions such as potentiometers. Inline PVG output adaptor: In this joystick an inline DFA 2/2 has been wired so that the joystick can control 2 Danfoss PVG valve sections proportionally. It can work with 12 or 24 V DC supply and output 0.25Vg to 0.75 Vg as required for PVG proportional valve control Joystick Features- Long life - tested to 20 million operations
- Rugged design
- Operating temperature: -40°C to +85°C
- EMC: 100V/m
- Fully sealed and encapsulated electronics
-
JSM Joystick for 2 axis analog + switched output with J Handle grip,4 momentary switches and trigger
$1,201.20Joystick with 2 axis-analog and switched outputs, J handle 4 momentary switches, 1 trigger Electronics The "JSM" Series joystick incorporates Hall sensor technology that provides a linear output of the attached handle position. This sensing technology is designed to perform consistency within harsh environments. Joystick Output: Analog .5 - 2.5 - 4.5 VDC output Switched 2.5A Solid State Switched outputs complete with redundant analog outputs Joystick Features- Long life - tested to 20 million operations
- Rugged design
- Proportional and Switched outputs
- Operating temperature: -40°C to +85°C
- EMC: 100V/m
- Fully sealed and encapsulated electronics
