Kvaser Air Bridge Light HS

Rated 0 out of 5
SKU: 00808-3
16 sold in last 05 hours

$1,829.52

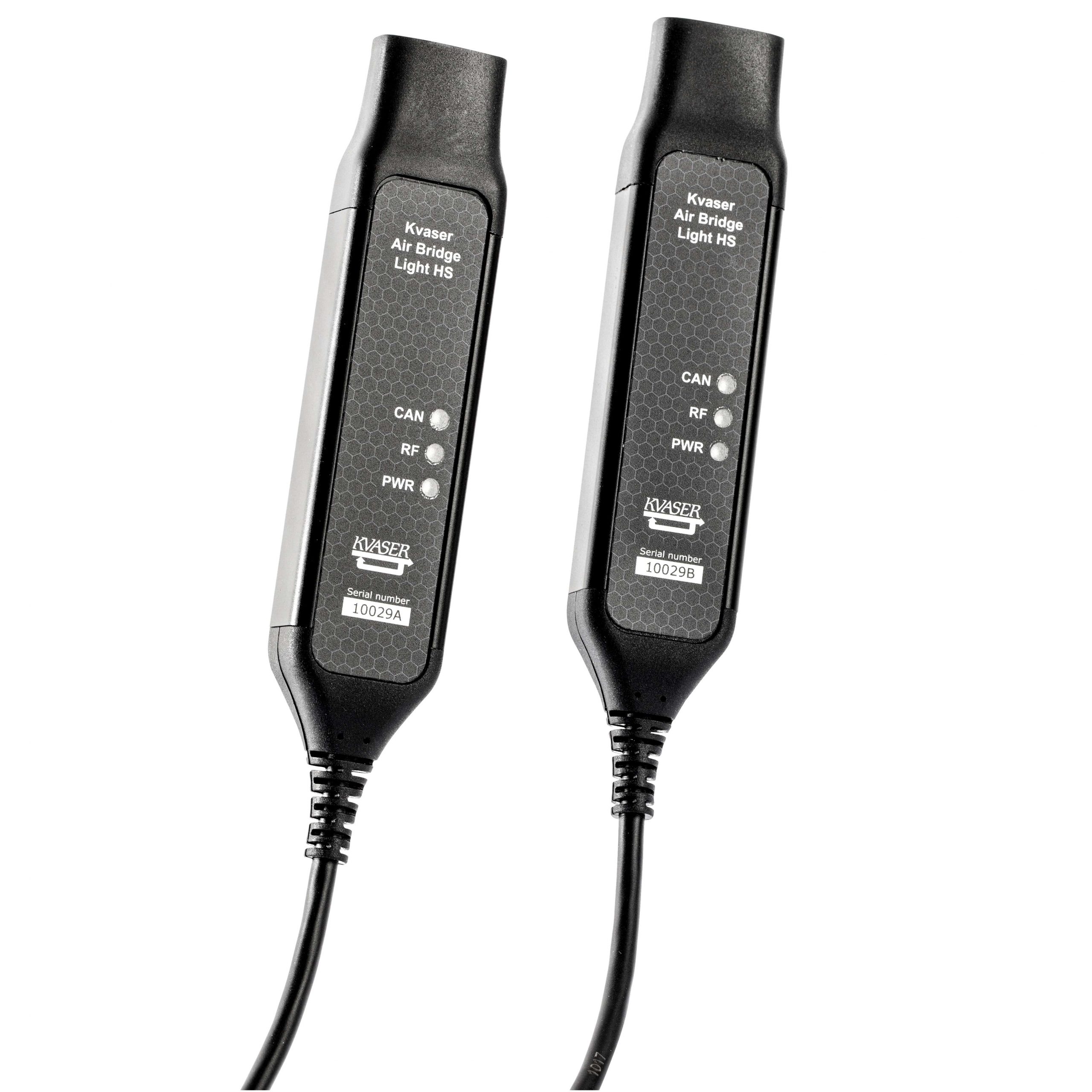

Kvaser Air Bridge Light HS is a configuration-free wireless CAN bridge that achieves predictable latency, without sacrificing stability or range. Comprising a preconfigured pair of plug-and-play units to rapidly exchange raw CAN data, the Kvaser Air Bridge Light HS is designed for environments or situations that make wired connection unsuitable or challenging e.g. between two moving parts that are connected by CAN.

There are two versions: (00808-3) Kvaser Air Bridge Light HS is approved for the European Union, while (01008-6) Kvaser Air Bridge Light HS (FCC) complies with US certification. Both share the same functionality but have different radio transmission schemes due to regulatory differences.

− +
Add to wishlist Add to compare

  • Order in The Next to get it by June 7, 2025
  • Real Time 184 Visitor Right Now
SKU: 00808-3 Categories: , , Tags: , , , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

    Major Features

    • A preconfigured pair of units that acts as a wireless CAN bridge.
    • Plug and Play, Driver Free and Configuration Free.
    • Automatic Baudrate Detection (125K, 250K, 500K, 1M).
    • Point to Point Radio Link.
    • 2.4 GHz Proprietary Protocol.
    • Internal Antenna Design, Antenna Output Power max 18 dBm approx.
    • High-Speed CAN Connection (compliant with ISO 11898-2), up to 1 Mbit/s.
    • Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
    • Power Supplied through the CAN Bus Interface.
    • Rugged Aluminum Housing.
    • Note: Error Frames and Arbitration information are not transmitted by the Air Bridge units across the wireless link.
