Isolated RS232/422/485 Serial Device Server

Rated 0 out of 5
42 sold in last 18 hours

$372.24

Features
  • Wide input range DC power supply.
  • Fully compatible with Ethernet TCP/IP protocol.
  • Support 3000V DC isolation protection.
  • Auto direction flow control on RS-485.
  • Surge protection on RS-422/485 data lines.
  • Support baud rate up to 230Kbps.
  • Power/Link/TX /RX mode LED indicator.
  • Support intranet and internet system setting function.
  • Support screw terminal and standard external DC power adaptor.
  • Virtual COM drivers for Windows 98/WIN2000/WIN XP/Vista/WIN2003/WIN 7/WIN8/WIN8.1.
  • DIN rail and panel mount.


Specifications
  • Power Input Voltage: DC +10V to +30V
  • Interface: Standard RJ45 LAN port
  • LAN: 10/100Base-T, 10/100Mbps auto-detecting.
  • RS-232: 5 full-duplex (TXD, RXD, CTS, RTS, GND)
  • RS-422: Differential 4 full-duplex wires ( TX+ , RX+, TX- , RX-).
  • RS-485: Differential 2 half-duplex wires (D+, D-)
  • Connection type: Screw terminal, accepts AWG#12~30 wire.
  • Signal LED: Power, Link, TX, RX
  • Power supply: Screw terminal, or external DC adapter.
  • Power consumption: 1.6W
  • Isolation voltage: 3000V DC
  • Operating environment: -10 to 50℃
  • Storage temperature: -20 to 70℃
  • Humidity: 10~90% Non-condensing
  • Dimension: 151mm X 75mm X 26mm
  • Weight: 375g
− +
Add to wishlist Add to compare

  • Order in The Next to get it by June 8, 2025
  • Real Time 141 Visitor Right Now
Categories: , , Tags: ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

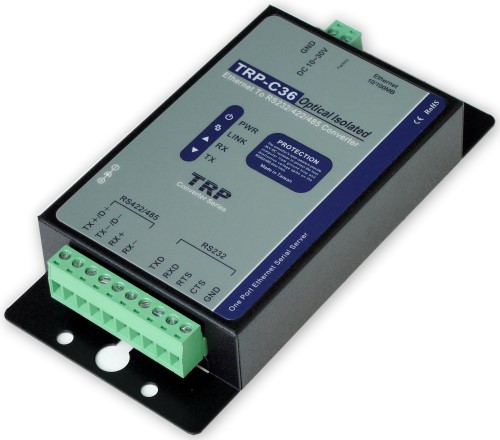

    TRP-C36, a high speed, single-port serial device, is designed to instantly convert data from RS-232/422/485 interfaces to an Ethernet network running at the TCP/IP, UDP protocol. By using a standard COM port and existing network infrastructure the device allow you to link together a distant RS-232/422/485 serial device. You can reach TRP-C36 from Windows and Linux without the need to modify existing software. TRP-C36 supports 10/100Mbps auto-detecting, and auto RS-485 data direction flow control, it also provides with 3000V DC isolation and internal surge protection to protect the converter against high input voltage spikes and ground potential differences, and ensure a save data transmission on network. The industry standard DIN rail and panel mounting design enable user a fast and professional installation.
