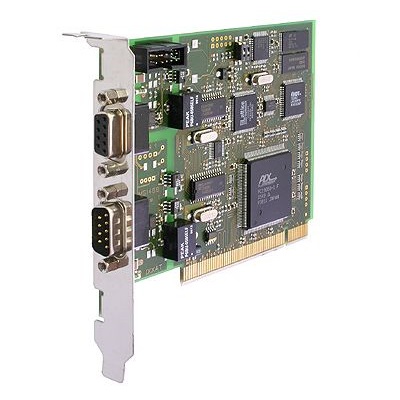

iPC-I 320/PCI II

Rated 0 out of 5
SKU: 1.01.0043.10200
15 sold in last 15 hours

$1,100.00

iPC-I 320/104; one CAN channel with galvanic isolation

This active CAN board with one por two CAN channels is appropriate for use in a wide variety of CAN applications. Filtering, pre-processing, transmission and time stamped storage of the CAN messages are just some of the features offered by the on-board micro-controller. In combination with the universal CAN driver (VCI), the iPC-I 320/PCI II allows an easy integration of PC supported CAN applications. Offering an exceptional combination of functionality and value, it is perfectly suited for high-volume productions. In addition, the iPC-I 320/PCI II is also well-suited for use with the IXXAT analysis and configuration tools.

− +
Add to wishlist Add to compare

  • Order in The Next to get it by June 7, 2025
  • Real Time 172 Visitor Right Now
SKU: 1.01.0043.10200 Categories: , , Tags: , , , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

    TECHNICAL DATA

    • PC bus interface: PCI bus (2.1), 32 Bit, 33 MHz, 5 Volt
    • PC address range: Plug & Play, 8 kB memory mapped and 128 Bytes I/O-area
    • Interrupts: INT A, Plug & Play
    • Microcontroller: Dallas DS80C320, 22.1184 MHz
    • Memory extension: 128 kByte SRAM, 128 kByte Flash, 4 kByte DPRAM
    • CAN controller: SJA 1000
    • CAN bus interface: ISO/IS 11898-2, Sub D9 connector according to DS 102, optional galvanic decoupling
    • Power supply: 5 V DC, 300 mA typ., provided by PC
    • Temperature range: 0 ºC to +70 ºC
    • Certification: CE, FCC, CSA/UL
    • Size: Approx. 124 x 97.5 mm

    CONTENTS OF DELIVERY

    • PC/CAN interface card and manual
    • CAN driver VCI for Windows 2000, XP
    • Simple CAN monitor “miniMon”
