Contactless reader CANCrocodile

Rated 0 out of 5
SKU: CANCroc-U12/24-L0.7-CS
21 sold in last 22 hours

$147.84

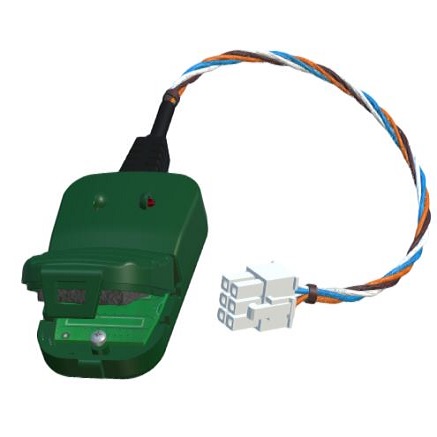

CANCrocodile is designed for safe data reading from vehicle CAN bus. Contactless reader is used within vehicle telematics and GPS tracking systems for receiving various parameters of vehicle operation from CANbus: speed, RPM, oil pressure & temperature, fuel volume & consumption, etc.

Data reading occurs without electrical connection and without damaging CAN wires. CANCrocodile works in “listen” mode only, i.e. it does not change original J1939 messages and does not send any signals to CANbus.

  • Compatible for SAE J1939, CAN Open, DeviceNet, NMEA 2000
  • Nominal supply voltage: 12/24 V   (5V – on request ; 2/24 A++ (low current consumption) – on request)
  • Current consumption: 300mA for “5V” version; 30/15mA for “12/24V” version; 10/5mA for “12/24 A++” version
  • Cable length- 0.7m  (2 m– on request)
  • Cable connector- Molex/bare wires/Special connector (specify when ordering)
− +
Add to wishlist Add to compare

  • Order in The Next to get it by March 6, 2026
  • Real Time 176 Visitor Right Now
SKU: CANCroc-U12/24-L0.7-CS Categories: , , , Tags: , , , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

    Safe connection to CAN bus

    CANCrocodile does no damage to insulation of wires and has no direct electrical contact with CANbus. Data reading occurs in a contactless way – CANCrocodile detects magnetic field around CAN-High and CAN-Low wires.

    Strong fixation of CAN bus wires

    The design of the body provides perpendicular fixing of the wires to reading surface. This way of fixing will not allow the CAN bus wires to slip from the CANCrocodile reading surface.

    A soft pressure pad in the upper part of the housing tightly presses the wires to reading surface.

    LED indication of operation modes

    Red indicator – power is on, blinking green indicator – messages receipt from CAN bus. Indicators allow to test the operation of the reader without dismantling and connecting to monitoring terminal.

    Connector Pinout

    CANCrocodile Connector pinout

    1 – power “+”
    2 – ground “-“
    3 – CAN-high
    4 – CAN-low
