4 port RS232/422/485 Serial Device Server

Rated 0 out of 5
15 sold in last 18 hours

$724.68

Features
  • Wide input range DC power supply.
  • Supports Socket operation modes like TCP Server, TCP Client, and UDP using TCP/IP and UDP protocols.
  • Support Auto-MDIX twisted pair crossover detection and auto-correction.
  • Each Port maximum connection 4 host PC at TCP Server and TCP Client Mode.
  • Maximum allowed bandwidth is 230.4 Kbps per Serial Port.
  • Supports Web Console, Telnet Console.
  • Runs in Stand Alone Mode.
  • Built in Restore Factory default push button.
  • Features Accessible Imps List to add or remove “legal” remote host IP Addresses to prevent unauthorized access to Serial Server.
  • Features Auto IP Address Report to periodically report the IP Address of Serial Server to the assigned Host on Network.
  • Auto direction RS485 flow control by hardware.
  • Surge protection and over current and over voltage on RS-422/485 data lines.
  • Virtual COM drivers for WIN 32bit XP /Vista/2003Server/2008 Server (32-bit & 64-bit), 2000 Server OS, Win 7 (32-bit & 64-bit) ,Win 8/8.1 (32-bit & 64-bit).
  • Fully compatible with Ethernet and TCP/IP protocol.
  • Supports 10/100 Mbps Ethernet.
  • Power/Link and 4 pair Serial RX/TX mode LED indicator.
  • Support screw terminal and standard external DC power adaptor.
  • Panel mounts and Din-Rail support.


Specifications
  • CPU:32 bit 580MHZ with MMU.
  • Power Input Voltage: DC +9V to +24V.
  • LAN: Auto-MDIX, 10/100 Mbps Auto-detecting.
  • RS-232: TX, RX, GND.
  • RS-422: TX+, TX-, RX+, RX-.
  • RS-485: Data +, Data –.
  • Data Rate: 75~230.4Kbps.
  • Parity: none, even, odd.
  • Data Bits: 5, 6, 7 or 8.
  • Stop Bits: 1, 2.
  • Configuration through Windows Admin Utility / Web Console / Telnet Console.
  • Protocol: ARP , IP , ICMP , UDP , TCP , HTTP , DHCP,PPPoE , DDNS , NTP , FTP , Telnet.
  • Power supply: Screw terminal, or standard external DC adapter.
  • Serial interface: +/-15 KV ESD.
  • RS422/485 interface: Surge, over current, over voltage protection.
  • Serial terminal and Ethernet with 3KV Optical Isolation.
  • Power consumption: 12V/400 mA .
  • Operating Temperature: -20 °C to 65 °C.
  • Humidity: 0~90% Non-Condensing.
  • Dimensions: 224(L)*107(W)*33(H) /mm.
  • Weight: 400g (W/Packing).
− +
Add to wishlist Add to compare

  • Order in The Next to get it by June 8, 2025
  • Real Time 160 Visitor Right Now
Categories: , , Tags: , ,
SHIPPING
  • Complimentary ground shipping within 1 to 7 business days
  • In-store collection available within 1 to 7 business days
  • Next-day and Express delivery options also available
  • Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
  • See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
  • Easy and complimentary, within 14 days
  • See conditions and procedure in our return FAQs
Have a question?




    Description

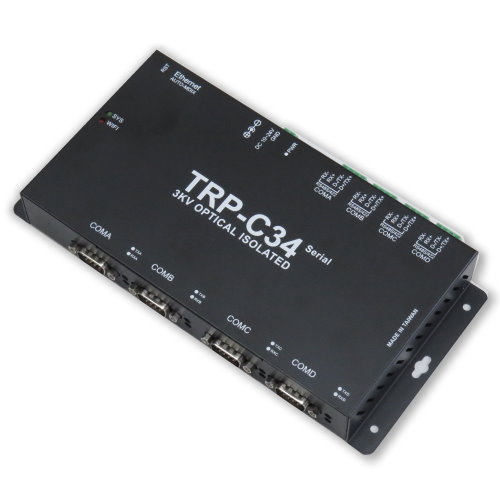

    TRP-C34R 4 RS232/422/485 Serial Server provides a transparent way of connecting Serial devices over Ethernet. It can transmit data between the Serial and Ethernet interfaces bi-directionally. To establish automatic or remote data acquisition.

     By specifying the IP address and the TCP Port number, a host computer can access different Serial Devices such as Serial Modems, Serial Thermometers, Magnetic Card Readers, Barcode Scanners, Data Acquisition Systems, POS Terminals, Industrial PCs etc., over the Network, you can centralize Serial Device management and distribute the management to different hosts at the same time. TRP-C34R Serial Server makes possible to access distant Serial Devices over Network as if they were directly connected to the Standard COM Port of a Personal Computer.

     TRP-C34R Serial Server supports different modes of operation allowing user to operate the system in different environments.

    Virtual COM Mode.

    TRP-C34R Serial Server comes equipped with COM drivers that work with Operating Systems WIN 32bit XP /Vista/2003Server/2008 Server (32-bit & 64-bit), 2000 Server OS, Win 7 (32-bit & 64-bit), WIN 8(32/64 bit),The driver establishes a transparent connection between host and serial device by mapping the IP: Port Number of the TRP-C34R’s Serial Port to a local COM Port on the host computer.

     The important point is that Real COM Mode allows users to continue using RS-232/422/485 serial communications software like HyperTerminal and similar applications.

     TCP Server Mode.

    In TCP Server mode, TRP-C34R Serial Server provides a unique IP: Port address on a TCP/IP network. TRP-C34R Serial Server waits passively to be contacted by the host computer, allowing the host computer to establish a connection with and get data from the serial device. This operating mode supports up to 4 simultaneous connections, so that multiple hosts can collect data from the same serial device—at the same time.

     TCP Client Mode.

    In TCP Client mode, TRP-C34R Serial Server can actively establish a TCP connection to a pre-defined host computer when serial data arrives. After the data has been transferred, TRP-C34R Serial Server can automatically disconnect from the host computer by using the TCP alive check time or Inactivity time settings. This Operating Mode supports establishing the TCP connection up to 4 Destination Hosts.

     UDP Mode.

    Compared to TCP communication, UDP is faster and more efficient. In UDP mode, you can multicast data from the serial device to multiple host computers, and the serial device can also receive data from multiple host computers, making this mode ideal for message display applications.

    TRP-C34R hardware support wide range power input , the 4 RS422/485 interface with surge, over current ,over voltage protection, the RS485 interface built-in hardware decoder ensure RS485 data without lost, Specify hardware  can ensure on line RS485 device working fine.

    The TRP-C34R has four synchronous D SUB 9 pin serial port for RS232 connection and 4 screw terminal block for RS422/485 and power connection. The Ethernet port support Auto-MDIX and Auto-select 10/100MB.

    When TRP-C34R working at unstable voltage industrial environment, the hardware circuit detection can prevent the power fail cause of the boot fail and Re-Boot.
